Antenna placement and protection is one of the most overlooked aspects of FPV drone building, yet it directly determines your video range, radio link reliability, and GPS performance. A poorly mounted antenna will compromise range, break in the first crash, or create interference with other components. This guide covers 3D printed antenna mounting solutions, optimal placement strategies, and printable protectors that keep your antennas safe through countless crashes.
1. VTX Antenna Mounting — Why It Matters
Your VTX antenna is your view to the world. A bad mount compromises not just range but also video clarity at any distance. The key principles for VTX antenna mounting are:
- Keep it away from the battery. A LiPo battery is a big block of conductive foil that blocks RF. Mount the antenna above or behind the battery, never directly next to it.
- Polarization matters. Your VTX antenna polarization (RHCP or LHCP) must match your goggle receiver antenna. Mixing polarizations causes 20dB of signal loss — that is 100x weaker signal.
- No carbon fiber in the radiation path. Carbon fiber blocks RF. The antenna’s active element needs a clear line of sight, or at minimum only plastic/TPU in the way.
- Secure but replaceable. Rigid mounts break the antenna SMA/MMCX connector in a crash. Flexible TPU mounts transfer the force to the mount instead.

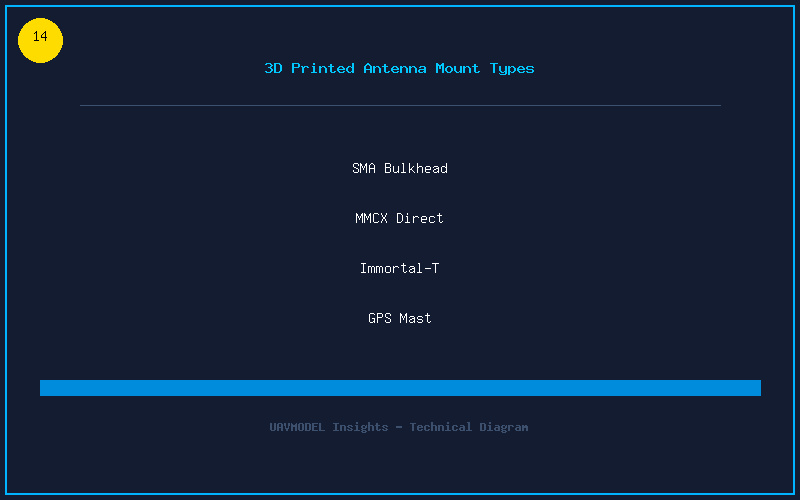

2. 3D Printed VTX Antenna Mount Designs
Several proven mount designs exist for different antenna types. You can find 3D printers and filament for these projects at UAVMODEL:
- Pigtail + SMA mount. The most reliable design. A short MMCX-to-SMA pigtail runs from the VTX to a TPU-mounted SMA bulkhead at the rear of the frame. The antenna screws into the SMA connector on the mount. This isolates crash force from the VTX connector.
- Direct MMCX mount. A compact TPU bracket that holds the antenna directly at the MMCX connector. Lighter but puts more stress on the connector during crashes.
- Side-mount pod. For frames with a top-mounted battery, a side-pod antenna mount keeps the antenna vertical and clear of the props. Popular on Source One and Apex frames.
- Long-range tail mount. A tall TPU mast at the rear with dual SMA connectors for diversity VTX setups. Used on 7-inch and larger long-range builds.
3. ELRS Receiver Antenna Mounting
ExpressLRS receivers use either a ceramic tower antenna (flat, rectangular) or a wire T-antenna. Each needs different mounting:
- T-antenna (recommended for range). The two active elements must be straight and perpendicular to each other (90-degree “V” or “T” shape). A TPU Immortal-T mount holds the arms at the correct angle. Mount it as far from the VTX antenna as possible — ideally on the opposite arm or rear standoff.
- Ceramic tower antenna. Compact and crash-resistant. Mount it on a TPU plate away from carbon fiber. Range is reduced compared to a T-antenna but perfectly adequate for freestyle and racing within 1km.
- Diversity receivers. Some ELRS receivers have two antenna ports. Mount one T-antenna vertically and one horizontally for polarization diversity. A dual TPU mount on the rear standoffs works well.
4. GPS Antenna Mounting for Reliable Lock
GPS modules are notoriously sensitive to interference. Proper mounting is the difference between a 30-second lock and never getting more than 6 satellites:
- Highest point on the build. The GPS ceramic patch antenna needs a clear view of the sky. Mount it on a TPU mast above everything else — props, battery, and especially above the VTX antenna.
- Ground plane is essential. The GPS module’s ground plane (copper layer on the PCB) must have at least 20mm of clear space around it. Do not mount it directly on carbon fiber — the carbon acts as a ground plane that detunes the antenna.

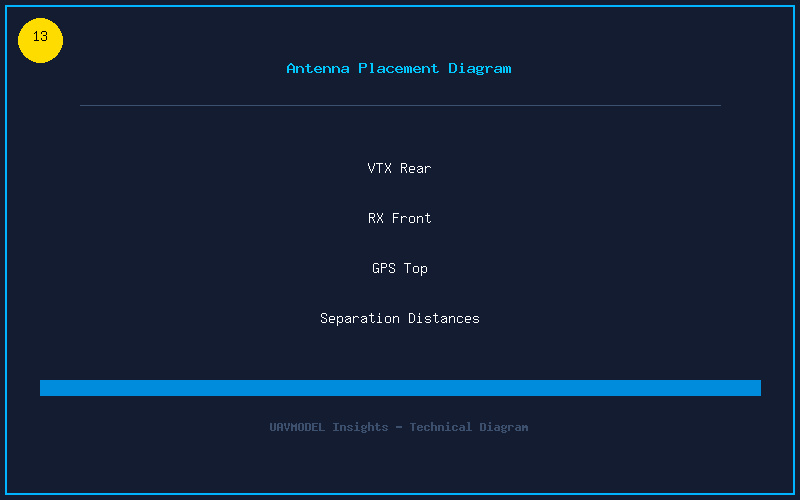

- Distance from VTX. A 5.8GHz or 1.3GHz VTX radiating near a GPS module will swamp the GPS receiver. Mount them at opposite ends of the frame. Minimum 8cm separation for 5.8GHz, 15cm+ for 1.3GHz long-range VTX.
- TPU mast with shock absorption. A flexible TPU GPS mast absorbs vibration that would otherwise reduce GPS accuracy. The popular “GPS rescue mast” designs on Thingiverse include an integrated mounting plate and TPU flex section.
5. Printing Antenna Protectors That Actually Survive
Antenna protectors take the most abuse on the drone. Here is how to print ones that last:
- Use 95A TPU. Harder materials crack. Softer materials deform and bounce back.
- 4+ perimeters with 60%+ infill. Protectors need to be tough, not light. Extra material here is worth the grams.
- Design tear-drop shapes. Aerodynamic shapes reduce drag and distribute impact forces. Sharp corners rip.
- Integrate zip-tie channels. A printed channel for a small zip tie secures the antenna wire without pinching it.
- Print spares. You will break antenna mounts. Print five and keep them in your field kit.
Antenna mounting is not glamorous, but it directly affects every flight. Spend an hour printing proper TPU mounts and protectors, and you will enjoy better video, stronger radio links, and fewer broken antennas.
